Precession of a Foucault pendulum: the physics (and maths) involved

The precession of a Foucault pendulum is easy enough to understand if the pendulum is suspended at one of the Earth's poles, because in this case the point of suspension is not accelerating (to a good approximation). At any other latitude, the rotation of the earth means that the point of suspension is accelerating. This introduces some more complicated time-dependent forces acting on the pendulum. At the poles, the (apparent) precession period is 23.9 hours, whereas elsewhere it is longer by a factor of the reciprocal sine of the latitude. But why? And is the precession uniform? Here we answer that. On the way, we'll derive expressions for the fictitious forces mentioned in the introduction.

This page is a physical analysis of the motion. I have kept it as simple as I could (though see footnote), but it does use vector calculus – without this tool, the analysis would be very long and awkward. (Physclips has introductory pages on vectors and calculus.) Before you start on the analysis below, however, see the simple Introduction to the Foucault pendulum.

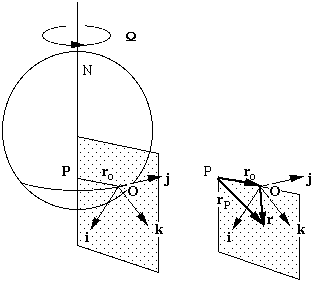

We treat the earth as rotating about its axis with angular velocity Ω relative to an inertial frame. At a point O on the surface with latitude λ, we choose a Cartesian coordinate system with the x axis horizontal and South, the y axis horizontal and East and the z axis vertical and up. In the diagram, the i,k plane (the North-South, vertical plane at the position of our pendulum) is shaded. (Bold font is used for vectors.) This coordinate system is not inertial: it is rotating with the Earth, so not only the position ro of its origin, but also i, j and k, are all varying in time.

P is the point on the earth's axis closest to O and ro is the vector from P to O. If the position vector of a moving particle is r relative to O, then its position vector relative to P is rp = r + ro. Further, let r be sufficiently small that the gravitational field does not vary significantly between O and r.

Now P is in an inertial frame, so the equation of motion for the particle is:

       mr"p = mG + F          (1)

where m is the mass of the particle, G is the gravitational field (i.e. force per unit mass) at O, F is the sum of all forces other than gravity, and dashes signify derivatives with respect to time.

diagram of Earth

(1) is an equation of motion in the inertial frame, and it is quite simple. However, r is a vector in a non-inertial frame. We shall now write the equation of motion in terms of r, so it will refer to motion in the rotating frame. The extra terms that will appear when we make the substitution will be the fictitious forces mentioned in the introduction.

For the motion in the frame of the earth at O the acceleration is r" = r"pr"o. Point O rotates with the angular velocity of the earth Ω, so

       r"o = − Ω2 ro = − Ω2ro(sin λ i − cos λ k)           (2)

so    mr" = mG + F + mΩ2 ro(sin λ i − cos λ k)           (3).

The last term in (3) is a fictitious force, called the centrifugal force. It's called fictitious because it doesn't exist: r"p is the acceleration in an inertial frame and, in (1), there is no centrifugal force. r" is the acceleration in a noninertial frame and, in such frames, Newton's first and second laws do not apply.
Consider now a pendulum consisting of a particle at the end of a string length a attached to a point with coordinates in the O frame (0,0,L). Suppose initially that the pendulum were stationary and vertical in that frame. The tension To is the only external force and:

       To = mgk           (4)

where g is the (local) apparent gravitational acceleration at O. (Note that g and G are neither parallel nor equal in magnitude because of the rotation of the earth. In Sydney, the centripetal acceleration due to the Earth's rotation (acG - g) has a magnitude of 28 mm.s-1: small compared to g ≈ 9800 mm.s-2 and therefore often neglected. In the Southern hemisphere, g points North of the centre of the Earth, as shown.) For this vertical pendulum, substituting (4) in (3) gives

diagram of pendulum

      mr" = mG + mgk + mΩ2 ro(sin λ i − cos λ k)           (5).

This 'pendulum', remember, is not moving with respect to the earth: it's a plumb bob and it just hangs vertically. So r, r' and r" are all zero. Thus for this case, (5) gives:

       G + Ω2ro(sin λ i − cos λ k) = − gk           (6).

In this equation, G is the gravitational field, −gk is the apparent gravitational acceleration, and the difference is the centripetal acceleration at that latitude, r"o = Ω2ro(sin λ i − cos λ k) = − Ω2ro.

To go further, we need to look at motion in a rotating frame of reference. Let's first consider two systems having the same origin. One, with subscript i, is inertial, and the other, without subscript, is rotating with Ω. We consider a point having xiii + yiji+ ziki = xi + yj + zk. Let's differentiate with respect to time, remembering that i, j and k may all be changing:

    (xi'ii + yi'ji+ zi'ki) = (x'i + y'j + z'k) + (xi' + yj' + zk') or

    r'i = r'+ xi' + yj' + zk'

Now i' is the motion of a point at i relative to O due to the rotation Ω of the frame so i' = Ω × i and similarly j' = Ω × j and k' = Ω × k, so

    r'i = r'+ Ω × r

which we can write as

    (d/dt)iri = (d/dt)rotr + Ω × r

to distinguish differentiation by observers in the inertial and rotating frames. To obtain the rate of change of a vector A in the inertial frame, we take its rate of change in the rotating frame, and add Ω × A. We can apply this relation for changes in another vector, the velocity r'. This gives

    (d/dt)ir'i = (d/dt)rotr' + Ω × r'
But we had r'i = r'+ Ω × r , so
    (d/dt)ir'i = (d/dt)rot(r' + Ω × r) + Ω × (r' + Ω × r)

    = (d/dt)rotr' + (d/dt)rot(Ω × r) + Ω × r' + Ω × (Ω × r)

    = (d/dt)rotr' + Ω' × r + 2Ω × r' + Ω × (Ω × r) , which I'll write as

    r"i = r" + Ω' × r + 2Ω × r' + Ω × (Ω × r) ,

which is a standard result for acceleration in a rotating frame. Now the origin of our frame of reference is not only rotating, it also has centripetal acceleration, which we saw above was r"o = − Ω2ro. So, for a frame that is both rotating with Ω and turning on the Earth's surface,

    r"i = r" + Ω' × r + 2Ω × r'+ Ω × (Ω × r) − Ω2ro          (7).

We can simplify this. Even on geolotical time scales, the earth's rate of rotation is hardly changing, so the second term is zero. Provided that the length of the pendulum is much less that the radius of the earth (it is probably about a millionth), then r is so much less than ro that we may neglect the Ω × (Ω × r) term in comparison with Ω2ro, which we have seen is tens of mm.s−2. (Note that this approximation is not appropriate for very large motions, such as that of planetary winds, ocean currents or even dead reckoning in airplane flights and long range ballistics.) However, an excellent approximation in our case is that

    r"i = r" + 2Ω × r'− Ω2ro .

Now consider a moving pendulum with tension T in the string. Use Newton’s second law in an inertial frame:

      mr"p = T + mG          (8).

Now we need to relate this acceleration r"p in the inertial frame to the r", the (apparent) acceleration in the frame on the surface of the earth. Using (6), (7) and (8), we write

       mr" = T − mgk − 2m Ω × v           (9).

Note the significance of the terms: the first is the string tension, the second is the apparent weight in the rotating frame and the third term, which depends on the velocity of the pendulum and on the earth's rotation.

Resolving in coordinates fixed with respect to the earth gives:

       mx" = Tx + 2mΩ sin λ y'                 (9.1),

       my" = Ty − 2mΩ (sin λ x' + cos λ z')    (9.2)     and

       mz" = Tz − mg + 2mΩ cos λ y'           (9.3).

For z much smaller than the pendulum length a, motion in the z (vertical) direction is small and so z' and z" are approximately zero. Equation (9.3) therefore becomes:

       Tz = mg − 2mΩ cos λ y'           (9.3*), whose last term is very small.

For small oscillations (x, y, z all << a), the components of the tension T in the string are

       Tx = − T x/a ,     Ty = − T y/a,     Tz = T(L − z)/a           (10).

As we usually do for a pendulum, set ω2 = g/a and substitute (10) and (9.3*) in (9.1) and (9.2), taking advantage of z' approx = 0 :

       x" − 2Ω sin λ y' + ω2x = 0           (9.1*)

       y" + 2Ω sin λ x' + ω2y = 0           (9.2*).

Now let us define the complex variable ζ = x + iy = |ζ|exp(i φ) (which represents the position of the pendulum in the horizontal plane). Multiplying (9.2*) by i and adding it to (9.1*) gives the differential equation for motion in the horizontal plane:

       ζ" + 2iΩ sin λ . ζ' + ω2ζ = 0           (11).

This is a version of the equation of the harmonic oscillator, but note that the coefficient of the first derivative of ζ is purely imaginary and so it does not contribute damping.

We can verify by substitution that an approximate solution to this differential equation is:

       ζ = (Aeiωt + Be−iωt)e−iΩt sin λ           (12)

(But a very good approximation. Substitution of (12) into (11), differentiation and cancelling gives

    ζ" + 2iΩ sin λ . ζ' + ω2ζ = Ω2sin2λ(Aeiωt – Be-iωt)

i.e. the remaining term is in Ω2 which is neglible in comparison with the other terms in Ωω and ω2, which do all cancel. We note that ω for the pendulum << Ω for the Earth.)

The complex constants A and B depend on the initial conditions of position and velocity. (Two simple cases are A = +/-B, both real, corresponding to motion passing through the equilibrium point. Note, however, that if the pendulum is released from a point of maximum amplitude, it never passes exactly through ζ = 0.)

Equation (12) is readily interpreted: if the earth were not rotating (Ω = 0), the solution is just that for a simple pendulum with period = 2π/ω, whose elliptical path is given by

    ζs = Aexp(iωt) + Bexp(−iωt).
Subject to the approximations already made, the axis of this ellipse does not vary with time. The same situation arises at the equator (where λ = 0). With Ω not equal to 0 and at latitude λ not equal to 0, the complex vector ζs rotates (in the frame of the earth) with angular frequency − Ω sin λ, i.e. with a period 2π/(Ω sin λ) = Tearth/(sin λ) where Tearth is the period of rotation of the earth*. Before we check the direction of precession, the author congratulates readers who have persevered and offers in felicitation this puzzle: why does the longest day of the year have neither the earliest sunrise nor the latest sunset? A clue is to be found early in the introductory page. Now back to the precession: Ω is positive (the earth rotates anti-clockwise as seen from the North Pole); λ is negative in the southern hemisphere, so − Ω sin λ is positive: the pendulum should precess anti-clockwise (from above) in the frame of the earth when viewed from the Southern hemisphere.

Complications

As usual, the real situation is more complicated: a finite pendulum which does not swing in a plane traces an ellipse whose axis precesses (in the direction of the orbit) even in a Newtonian frame. If the orbit of a pendulum passes through the origin, we see from symmetry that it should not precess in a Newtonian frame. To demonstrate the precession due to the Earth's rotation, the pendulum should move slowly over a small angle. Any asymmetries in the support, launching or drag of the pendulum which would give rise to elliptical orbits must be removed. This is one reason why Foucault pendulums are usually long, and firmly and symmetrically mounted.

Finally, a complication that applies in principle to all pendulums, including those of clocks. Taking x and y components of equation (8) shows an asymmetry in the x and y directions:

       x" − 2Ω sin (λ) y' + ((g/a) − Ω2 sin (λ)2) x = 0, and

       y" + 2Ω sin (λ) x' + ((g/a) − Ω2) y = 0

Thus, at positions other than the poles, there is a small difference in the pendulum frequencies for the NS and EW directions. Ω/2π is of course about once per day, and for a Foucault pendulum, (g/a)1/2/2π is of order once every several seconds, so this variation is small. For a grandfather clock, (g/a)1/2/2π is faster and so the variation with orientation is smaller still. It is occasionally said that one might detect the difference in the timekeeping of a good pendulum clock when it is rotated between a NS and an EW swing. However, other effects, such as the angle of the floor, may be larger.

* Special cases. The special case when the pendulum swings NS is simpler. If one assumes that the precession rate is constant (we have just seen that this is not quite true), one can estimate the precession rate by considering one of these special cases. For instance:

Consider a time at which a pendulum (still in the Southern hemisphere) swings North-South. At the Northern end of the swing, the pendulum bob is further from the axis by a distance Z.sin λ, where Z is the amplitude of the swing, so the support point overtakes the pendulum bob with a relative horizontal speed ZΩ = 2πA.sin λ/Tearth. Divide the circumference 2πA of the envelope of the pendulum's path relative to the earth by this speed and one has an estimate of the period of precession Tearth/sin λ.

Thanks to Norman Phillips and Jacques Gilbert for suggestions.
